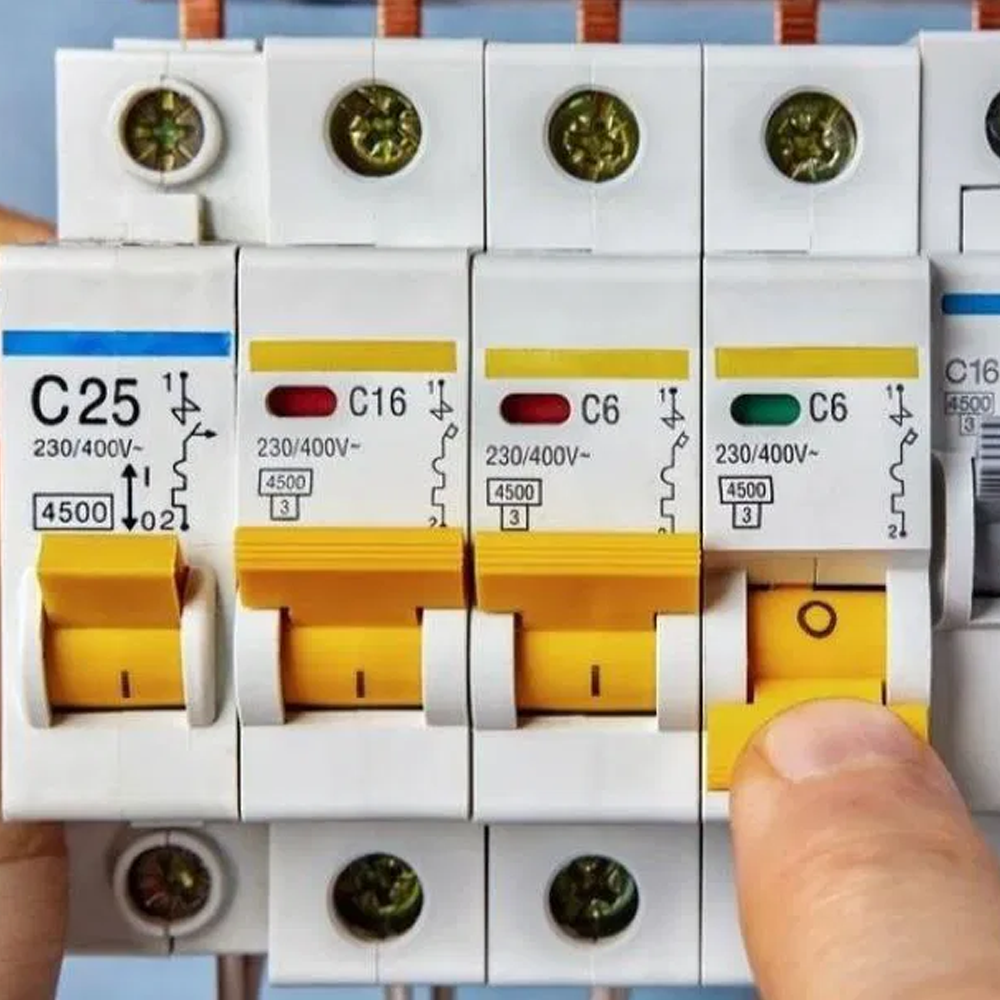

The Circuit Breakers range offers comprehensive protection for residential, commercial, and industrial applications.

Applications:

• Residential buildings.
• Commercial complexes.
• Industrial facilities.
• Infrastructure projects.

Key Features:

• Types: MCBs: e.g. AKBS, AKBH series.
• MCCBs.
• RCBOs: e.g. AROH, AKSO series.
• RCCBs: e.g. AAUR8 series.
• Isolators: e.g. AKBL series.
• AFDDs: e.g. AMASH series.
• Enhanced safety against overloads, short circuits, arc faults and earth leakage and fast tripping mechanisms.

 Technical Specifications:

Current Ratings:

• MCBs: 1A to 125A (e.g., AKBS: 1–63A; AKBH: 10–125A).
• RCBOs/RCCBs: 6A to 100A (e.g., AROH: 6–63A; AAUR8: 16–100A).
• Isolators: 63A to 125A (AKBI series).

Pole Configurations:

• 1P, 1P+N, 2P, 3P, 3P+N, 4P.

Residual Current Sensitivity:

• 10mA, 30mA, 100mA, 300mA (selectable for RCBOs/RCCBs).

Breaking Capacity:

• Up to 10kA (standard) and 20kA (AKBH series).
• Termination:
• Cable termination up to 50mm² (e.g., AKBI isolators).

 Certifications:

• IEC/EN, CE, CB Scheme, RoHS, SASO.
• SEC approval is awaited.

Choose AWAL for your electrical needs!
